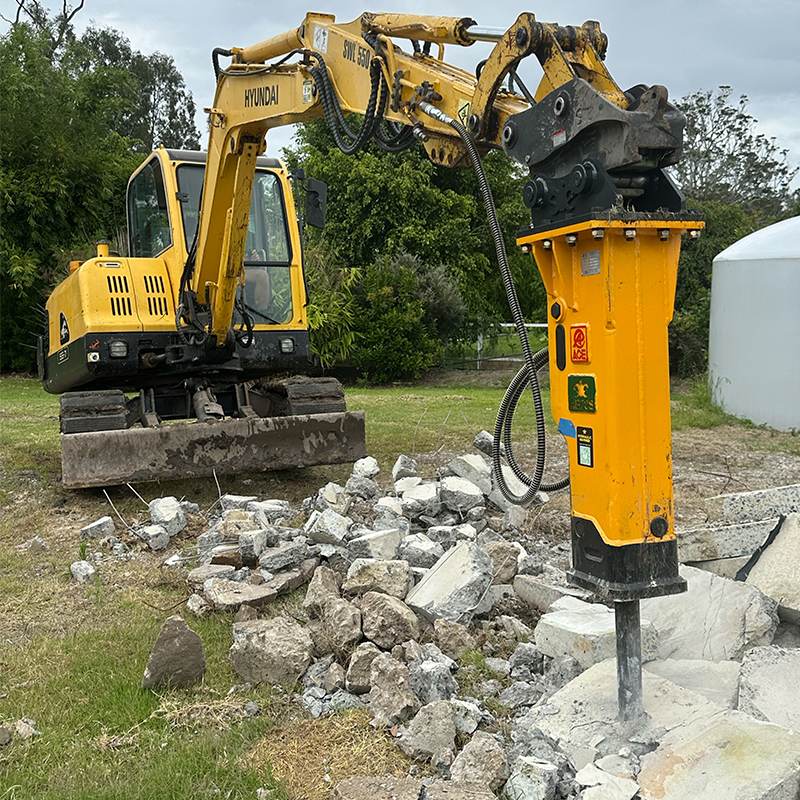

Hydraulic Hammers / Rock Breakers for Sale or Hire

Engineered to have the highest power-to-weight ratio, our Ace Hydraulic Hammers maximises the energy transfer to the chisel efficiently with its extended piston stroke power. The box type (silenced) design with a unique suspension will reduce vibration to protect the machine, and provide greater comfort for the operator whilst minimising oil flow interruption.

Ace Hammers has over 40 years of experience in the manufacture of Hydraulic Hammers / Rock Breakers. Constructed from high-strength Korean steel and fully assembled in Korea, Ace Hammers are designed for simple application and easy maintenance and include a lifelong guarantee.

Available to suit all major excavator brands within the 1 – 38 tonne range, they are ideal for any rock or demolition application in limestone, asphalt, or massive reinforced concrete structures.

Our Ace Hydraulic Hammers include:

  • Tool Box
  • 2 Moils
  • Extra Seal Kit
  • Hydraulic Hoses
  • Gas precharged and set to working condition
  • 12 months warranty*

*  Warranty excludes general wear and tear on moils, chisels, bushings, retainer pins, hoses and couplers.

MODEL NUMBER
SPECS MEASUREMENT AB45S AB70S AB85S AB100S AB140S AB150S
Tool Diameter Mm 45 68 85 100 140 150
Excavator Weight Tonne 1.2 – 3.0 3.5 – 6.5 7.0 – 13 11 – 16 18 – 26 26 – 35
Operation Weight Kg 125 308 575 870 1,775 2380
Impact Energy Joule 248 800 1,515 2,842 7,556 9,150
Required Oil Flow LPM 20 – 40 40 – 70 60 – 100 80 – 120 130 – 180 160 – 190
Operating Pressure Kgf/cm² 90 – 120 110 – 140 130 – 160 150 – 170 160 – 180 160 – 180
Blow Per Minute Bpm 700 – 1,200 500 – 900 400 – 800 350 – 780 350 – 500 320 – 420
Backhead N² Pressure Bar 16 16 16 16 16 6
Hose Diameter Inch 1/2″ 1/2″ 3/4″ 3/4″ 1″ 1″
