THE ULTIMATE BUCKET FOR VERSATILITY

Our 4-in-1 Bucket delivers maximum fill with minimal effort for super efficient cycles.

4 in 1 bucket

WHAT OUR CUSTOMERS SAY

All the radius’ are spot on for trimming & picking things up. I love the strength of it and the bolt-on rear cutting edge. One tough bucket.



CHRIS WOODS
Earth Trim Excavations

Earth Trim 4 in 1

FEATURES & BENEFITS

The ultimate bucket for versatility, our Multi-Purpose 4-in-1 Bucket gives you a bucket, a dozer, a grapple as well as a scraper.

With a robust designed main pivot section, along with 30mm hardened pins, one-piece back plate design, curved side plates for easy carrying and other elements to add strength and durability that is second to none. The extra heavy duty flat floor is not only stronger, but allows easy filling and emptying of the bucket.

Our 4-in-1 buckets are manufactured from eie80 grade* high strength steel and designed with a large, heavy-duty double-acting hydraulic cylinder. The high rated Hallite seals ensure our hydraulic cylinder is capable of operating at pressures in excess of 350 Bar (5,000 psi). All pins are hardened and greaseable and have hardened bushes for easy replacement when wear occurs.

Suits all major Skid Steer Brands: Bobcat, ASV, New Holland, Kubota, Caterpillar, Gehl, Case, JCB, John Deere, Manitou, Komatsu, Yanmar.

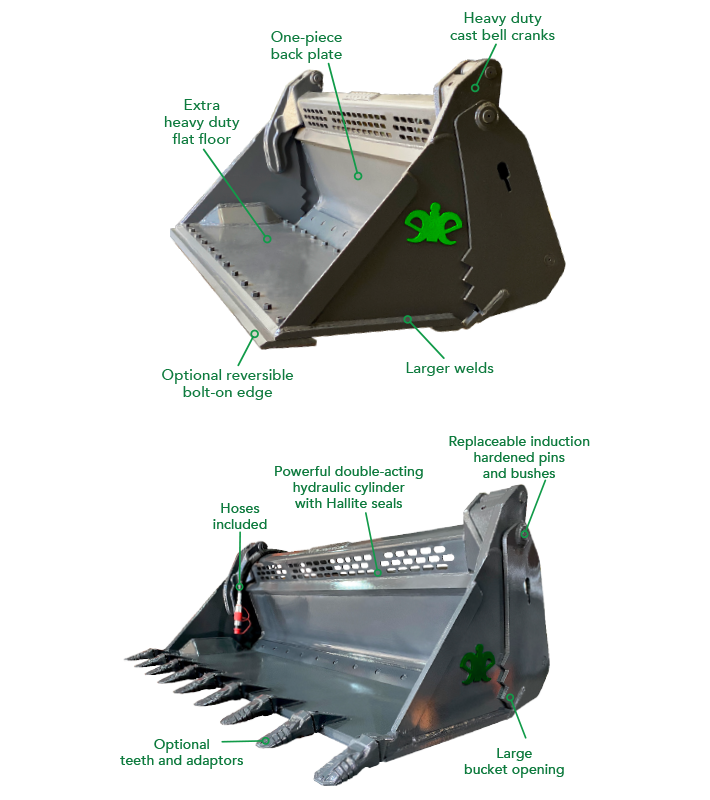

4 in 1 Bucket Diagram
4 in 1 bucket

BUCKET SPECS

INCLUDED

Hoses, Bolt-on Dozer Edge

OPTIONAL

Teeth and Adaptors, Bolt-on Edge

MACHINE

Universal

WIDTHS

1250mm, 1575mm, 1680mm, 1750mm, 1880mm, 2100mm

GALLERY

RELATED PRODUCTS

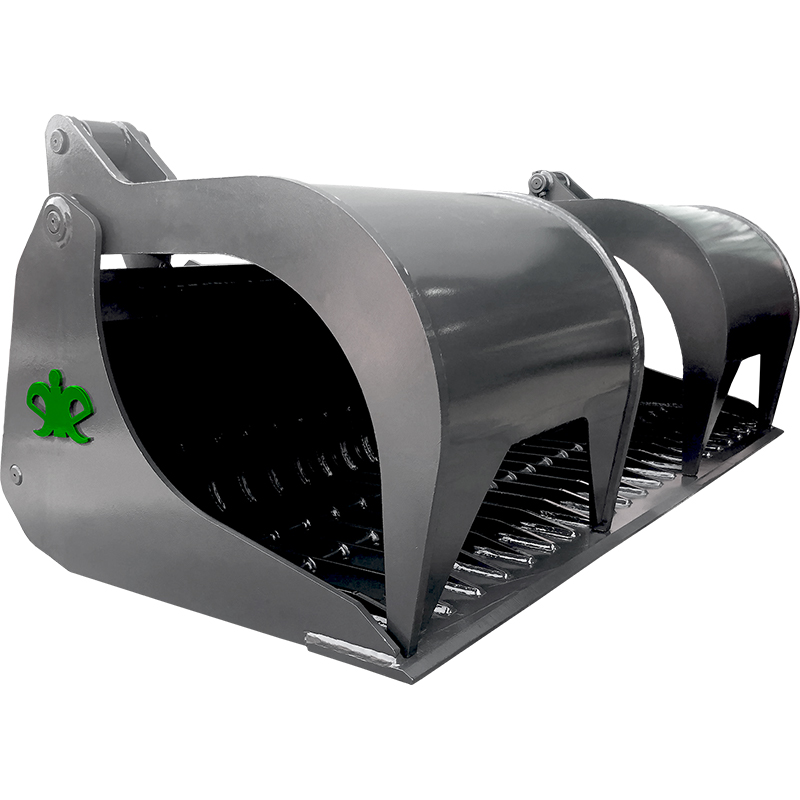

SKELETON GRAPPLE BUCKET
SKELETON GRAPPLE BUCKET
Designed to handle & secure bulky, irregular shaped objects whilst allowing the dirt to sift through.
1750mm wide

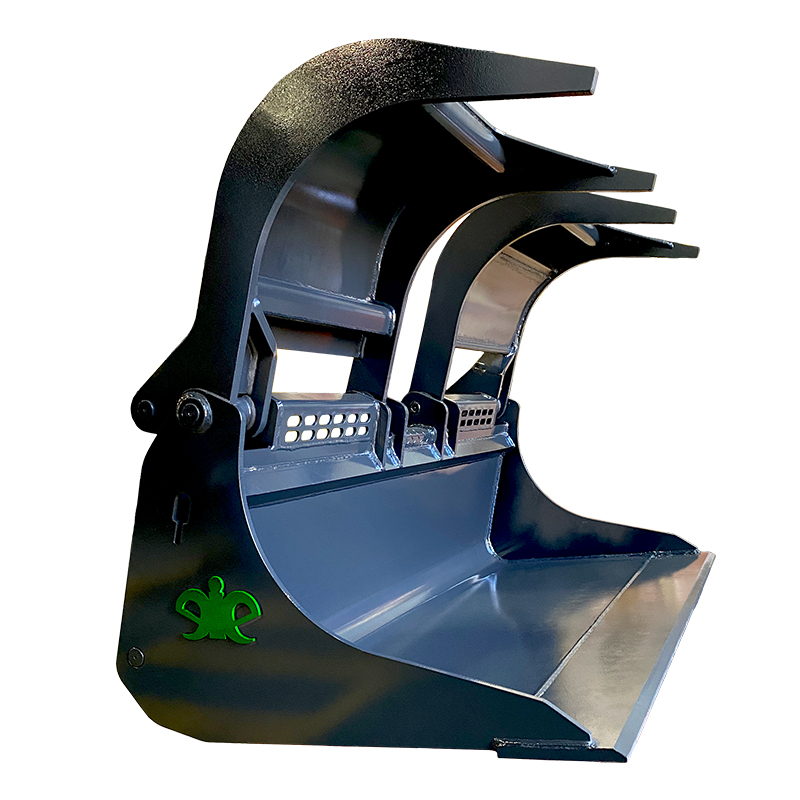

GRAPPLE BUCKET
