Compacting Made Easy: Choosing Between Compaction Wheels and Drum Rollers.

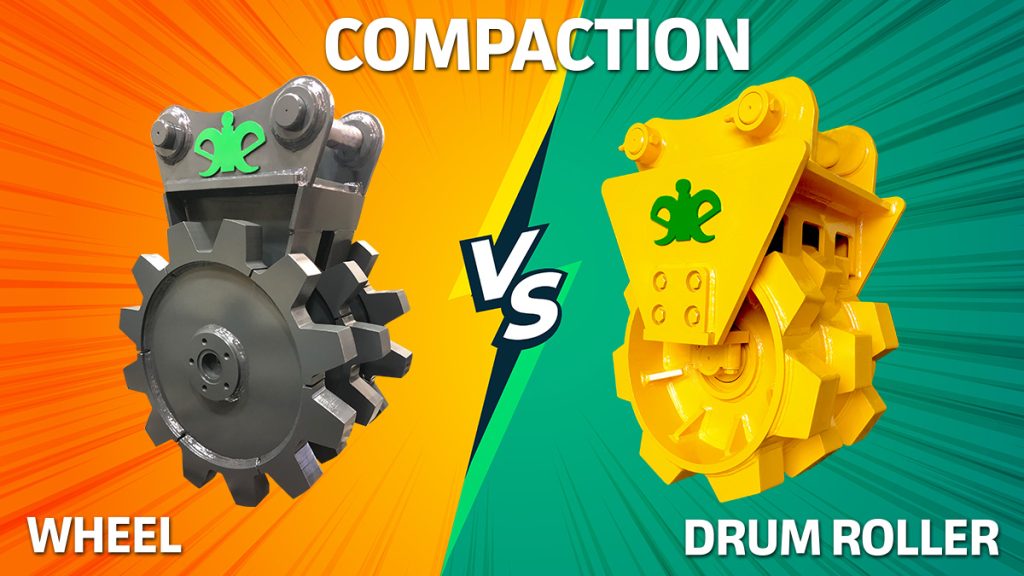

Compaction wheels vs Compaction drum rollers

Trench work, retaining walls, and landscaping projects all require one crucial step: proper compaction of the soil. But achieving that perfect density can be tricky. That’s where compaction wheels and drum rollers come in. Though they both achieve the same goal, they excel in different situations. Let’s break down the key features of each to help you choose the right tool for the job.

Compaction Wheels: Ideal for Trenches and Tight Spaces

  • Mounted directly on excavators, compaction wheels utilise the excavator’s weight for superior compaction force.
  • Padfoot Design: Penetrates deep into the trench fill, effectively mixing and displacing soil to eliminate voids from the bottom up.
  • Tapered Pads: Designed for easier removal from sticky materials like wet clay, maximising compaction efficiency.
  • Multi-Wheel Advantage: With 3 or more wheels, compaction wheels allow for close compaction to trench walls due to the placement of the support brackets.
  • Deeper Fills: Accommodates up to 400mm of fill material, reducing the number of compaction passes needed.
  • Solid Steel Construction: Offers increased weight for faster compaction with minimal excavator arm pressure.
  • Durable Bushes: Ensure extended service life in various conditions like dust, water, and mud.

The Downsides:

  • Cost: The solid steel construction makes compaction wheels slightly more expensive than drum rollers.

Compaction Drum Rollers: Perfect for Open Areas

  • Drum Design: Features a smooth or padlocked drum ideal for compacting large, flat surfaces like roads, dams, and highway batters.
  • Cost-Effective: Utilises a lighter drum design with excavator track rollers as the core, making them a more budget-friendly option.
  • Simple Manufacturing: Easier to manufacture due to the less complex design.

Limitations to Consider:

  • Lift Depth: Requires placing fill material in thin layers (around 200mm) to achieve optimal compaction, increasing the number of passes needed.
  • Limited Compaction Depth: Compaction effectiveness reduces once the fill reaches the drum height, requiring significant force for further compaction, putting strain on the machine and extending work time.
  • Restricted Trench Access: Brackets on either side of the drum prevent compaction close to trench walls.

Choosing the Right Tool

For trench work, tight spaces, and deeper fills, compaction wheels reign supreme. Their deep padfoot penetration, multi-wheel design, and heavier weight ensure efficient compaction with minimal hassle. However, for open areas and cost-conscious projects, compaction drum rollers offer a good balance of functionality and affordability.

By understanding the strengths and limitations of each tool, you can select the ideal compaction solution for your specific needs, ensuring a strong, long-lasting foundation for your project.

Not sure which compaction solution is right for your project?

Choosing the right compaction equipment can make a world of difference to your project’s efficiency and success. Contact our expert team today for a chat and guidance on selecting the perfect compaction wheel or drum roller for your specific needs. We’ll ensure you have the right tools to get the job done quickly and effectively.
